Essential Fuel Tank Vent

Select your model variant above (RV-10 or RV-14). Specifications and part numbers for each are listed below.

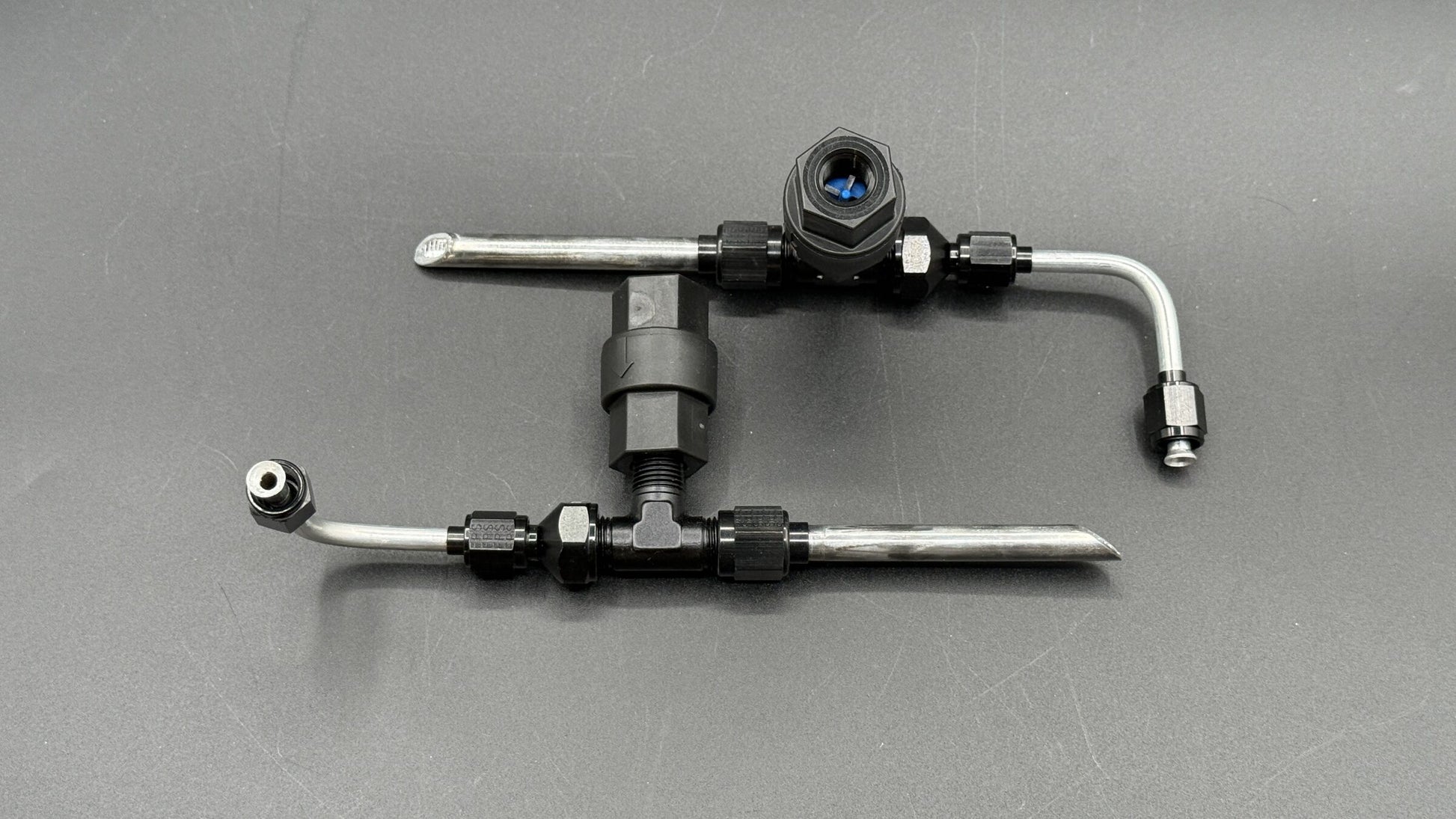

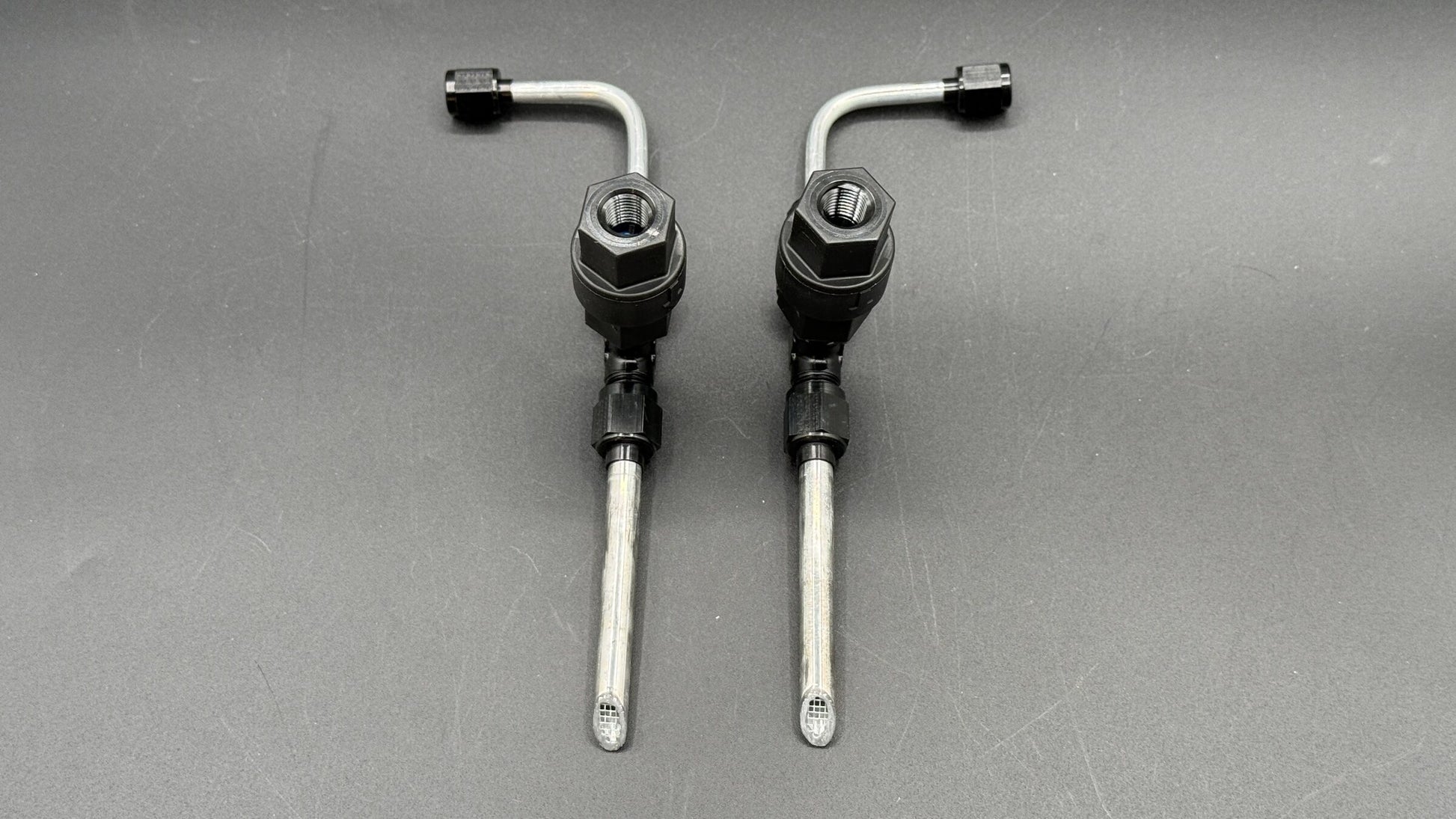

Essential Fuel Tank Vent – RV-10
P/N ACE70

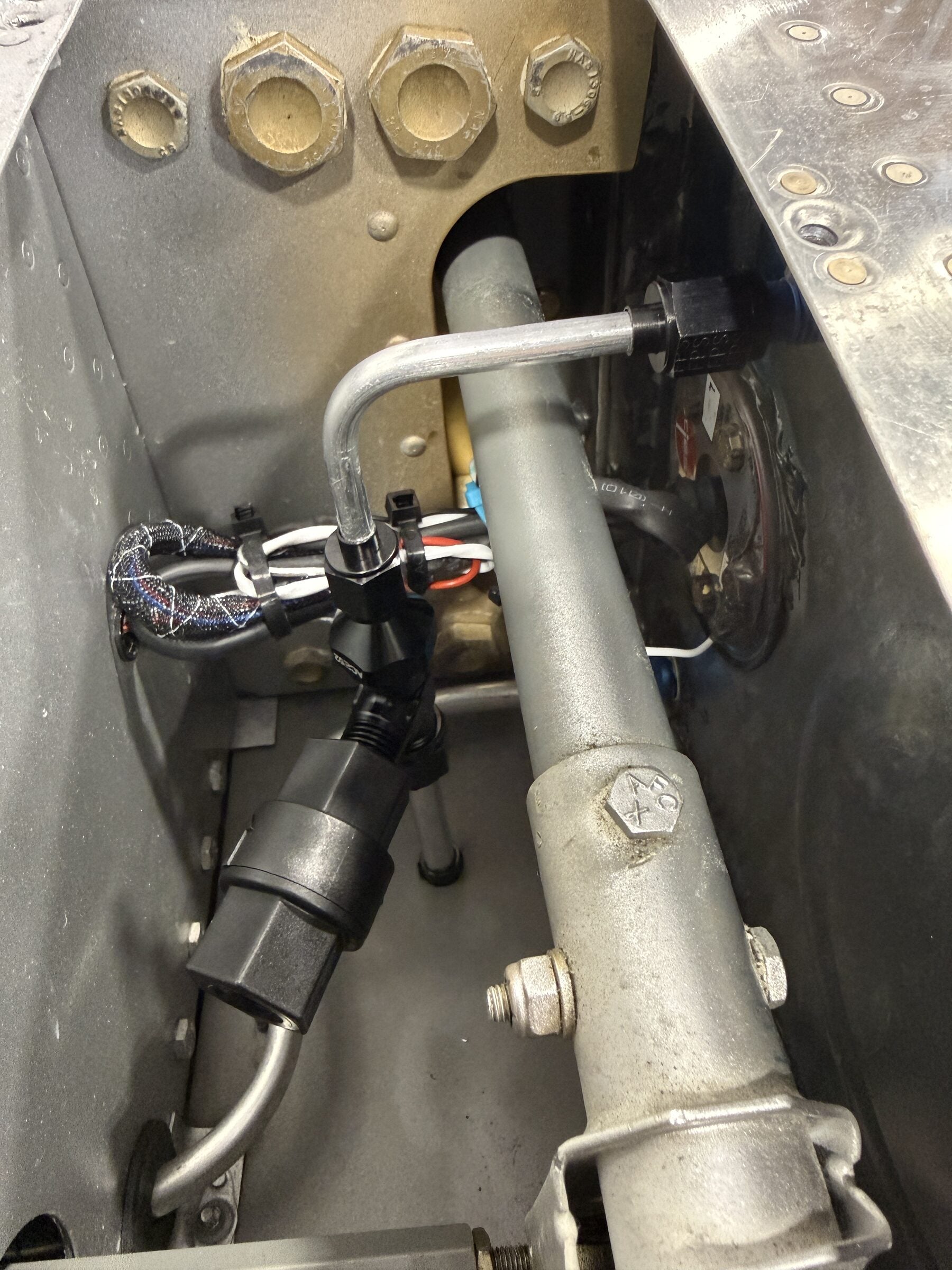

The Ace Aviation Supply Essential Fuel Tank Vent guards against insect activity like mud daubers and ice buildup that can lead to a blocked primary fuel vent. It also includes a secondary vent located in the wing root with a one-way valve to allow air into the tank but no fuel into the wing root in the event that the primary vent incurs ice during flight.

It also increases the diameter of the standard vent line from 1/4" to a larger 3/8" without any modification to the standard fuel tank, incorporating a screen on the exterior of the vent line to deter insect activity.

Features

• Screen covering primary vent to prevent insect activity in the fuel vent line
• Secondary vent source in the event that the primary vent gets clogged

Benefits

• Reduces probability of fuel starvation due to a blocked vent
• Less likely to experience a vacuum on the fuel tank causing tank deformation/damage due to continued vent blockage

Includes

(2) ACE70 Essential Tank Vent Assemblies (1× ACE70L and 1× ACE70R)

Essential Fuel Tank Vent – RV-14
P/N ACE74

The Ace Aviation Supply Essential Fuel Tank Vent guards against insect activity like mud daubers and ice buildup that can lead to a blocked primary fuel vent. It also includes a secondary vent located in the wing root with a one-way valve to allow air into the tank but no fuel into the wing root in the event that the primary vent incurs ice during flight.

It also increases the diameter of the standard vent line from 1/4" to a larger 3/8" without any modification to the standard fuel tank, incorporating a screen on the exterior of the vent line to deter insect activity.

Features

• Screen covering primary vent to prevent insect activity in the fuel vent line
• Secondary vent source in the event that the primary vent gets clogged

Benefits

• Reduces probability of fuel starvation due to a blocked vent
• Less likely to experience a vacuum on the fuel tank causing tank deformation/damage due to continued vent blockage

Includes

(2) ACE74 Essential Tank Vent Assemblies (1× ACE74L and 1× ACE74R)
