Ace Aviation Supply

Complete Smoke System

$1,330

Sale Sold out

Install Style Bung Mounted Strap Mounted

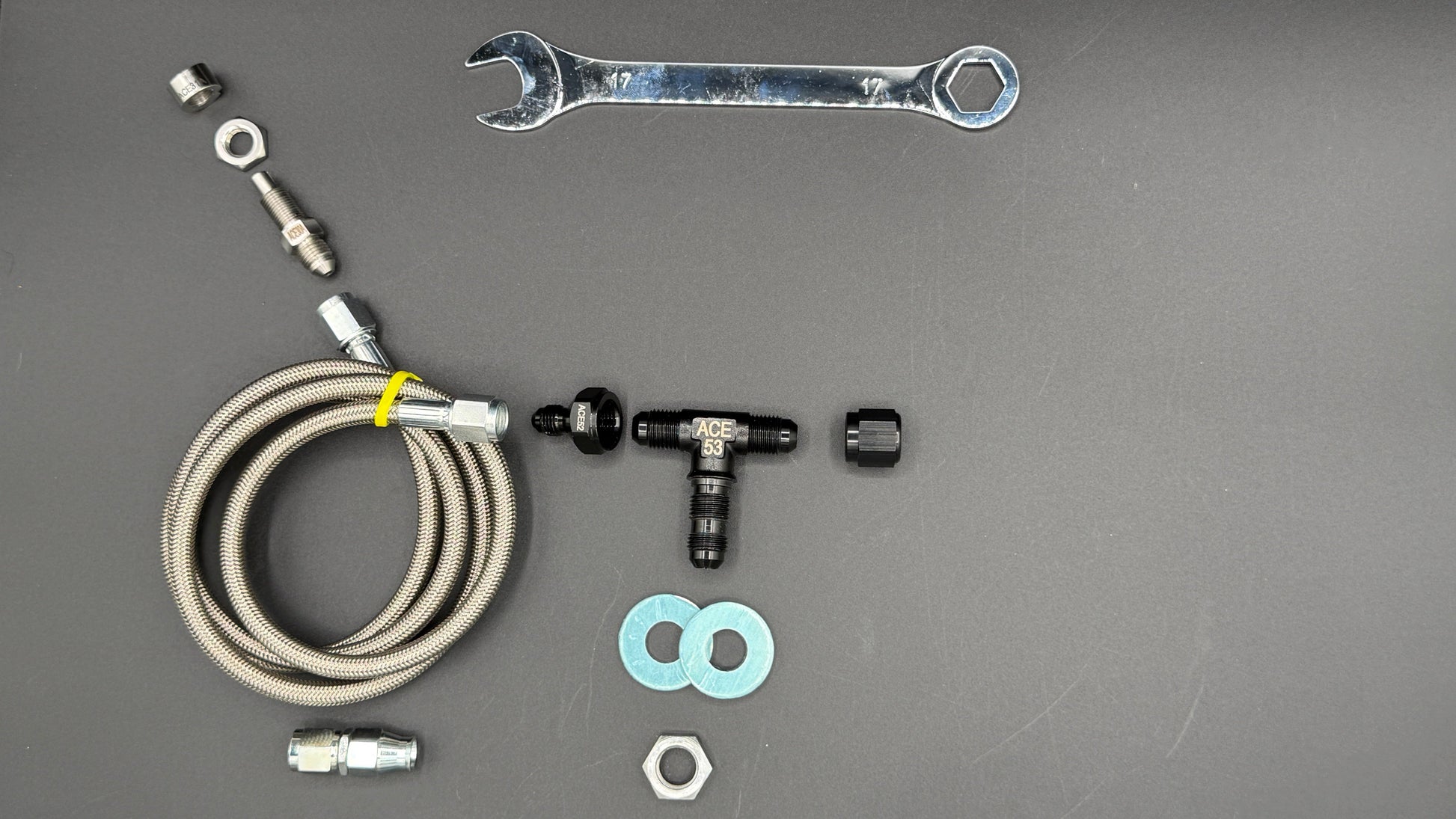

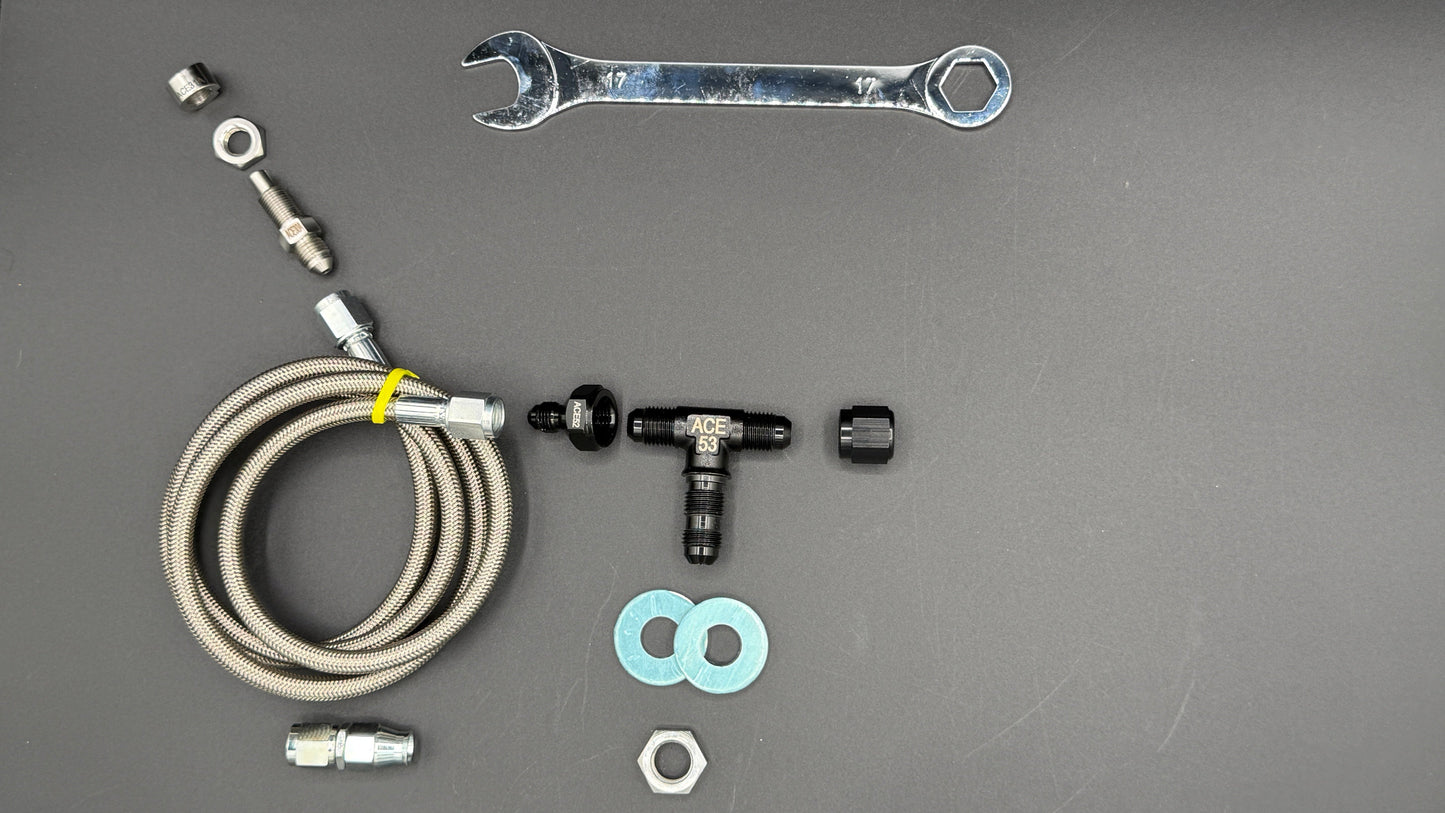

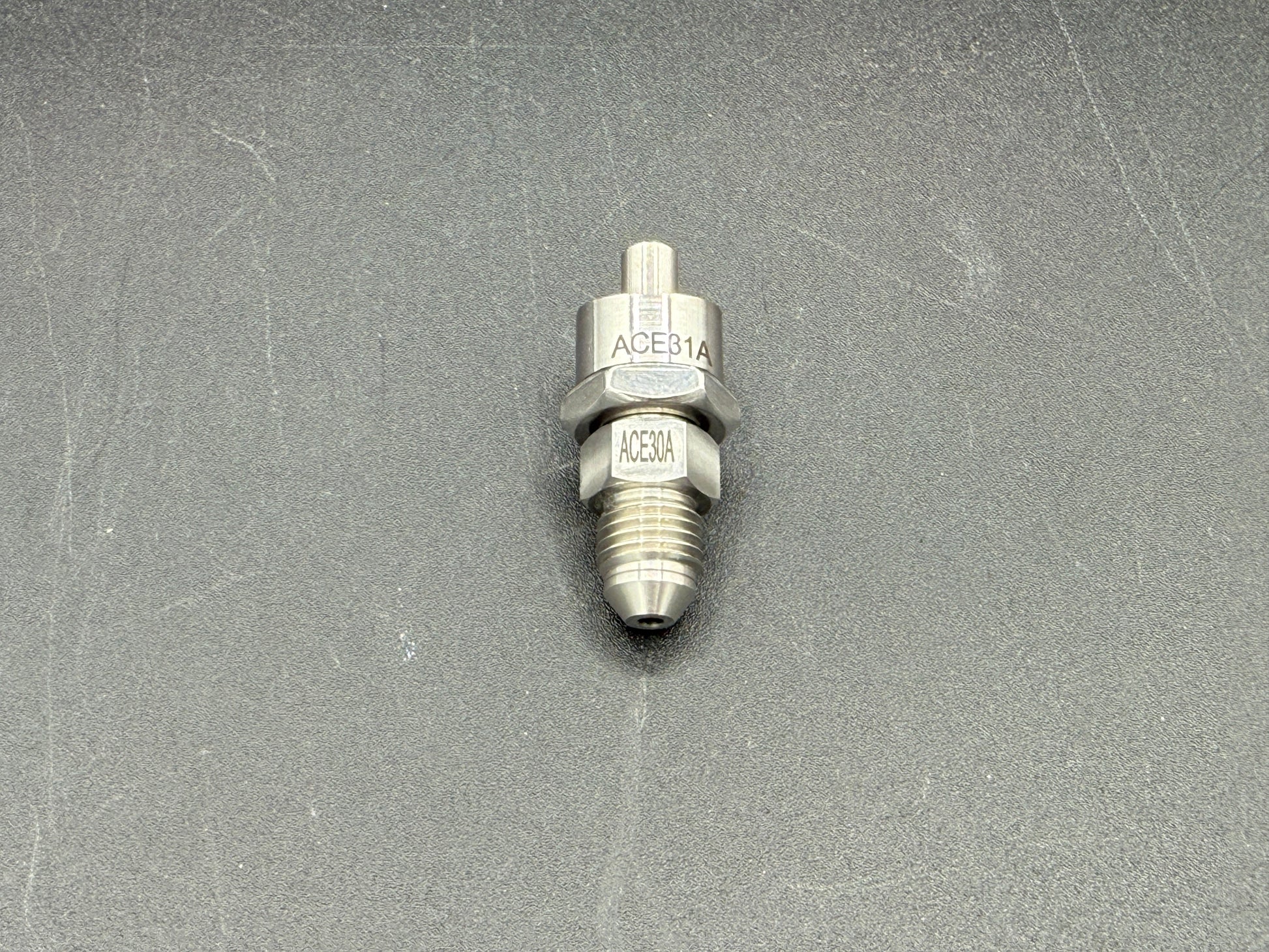

(1) Ace Smoke Injector Assembly – Bung Mounted (P/N ACE33)
- (1) Ace Smoke Injector – Bung Mounted (P/N ACE30)
- (1) Weld-on Bung (P/N ACE31)
- (1) Stainless Jam Nut (P/N ACE32)
(1) Tube Anti-Seize
(1) Injector Jam Nut Wrench (P/N ACE34)
(1) 48" PTFE Stainless Braided Smoke Hose assembly with straight ends (P/N ACE10)
(1) 4AN Reusable Hose End, used to shorten your hose length if desired (P/N ACE107)
(1) Firewall Tee to Hose Adapter (P/N ACE52)
(1) Firewall Tee (P/N ACE53)
(1) Cap for Firewall Tee (P/N ACE54)
(2) Firewall Washer (P/N ACE50)
(1) Steel Nut for Firewall Tee (P/N ACE51)
(1) 90° fitting for cabin-side of firewall (P/N ACE23)

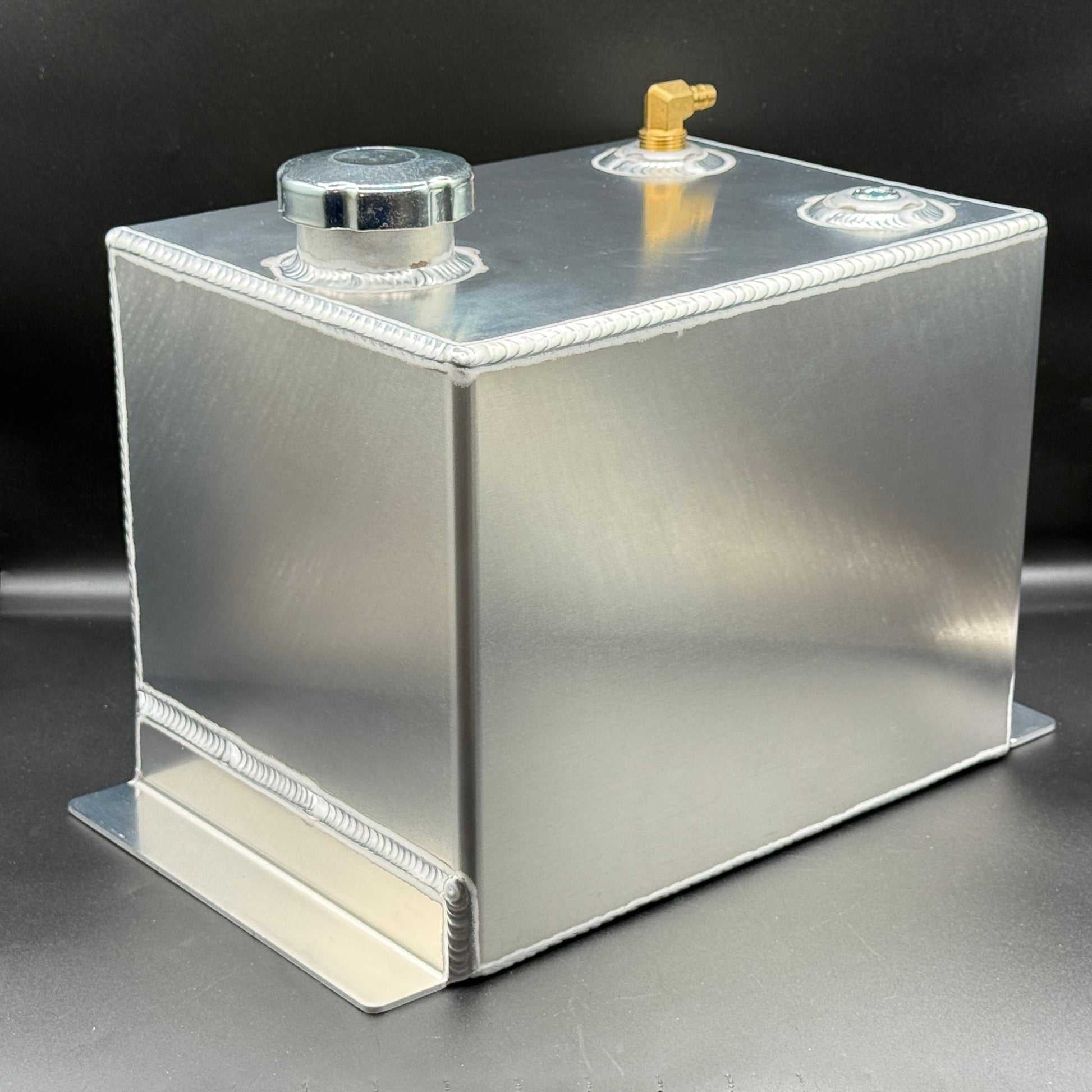

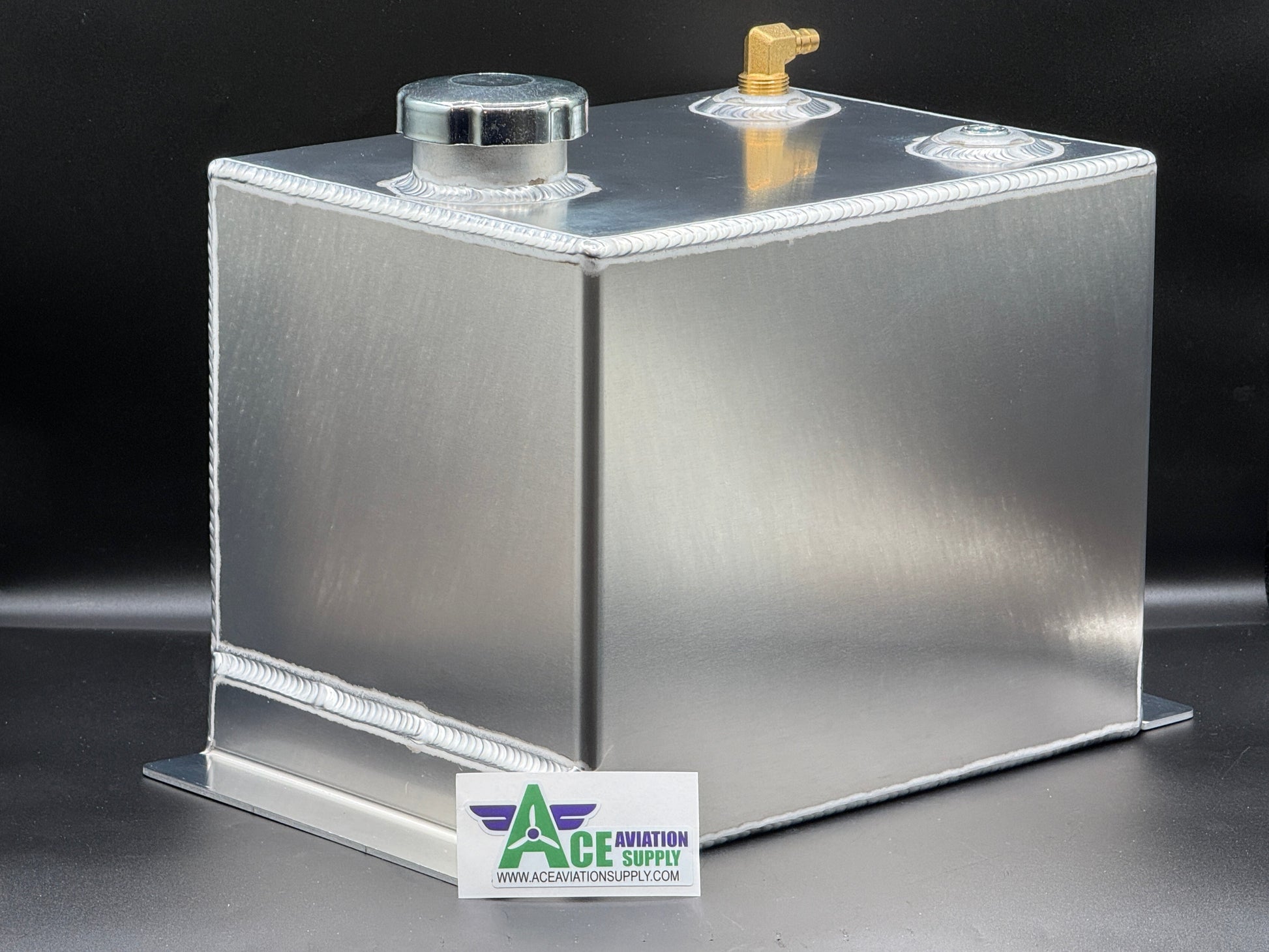

(1) 4 Gallon Smoke Oil Tank Assembly
- (1) Aluminum 4 Gallon Smoke Oil Tank (P/N ACE114)
- (1) Vented Cap (P/N ACE112)
- (1) ½" NPT Tank Plug
- (1) Smoke Oil Clunk Assembly (P/N ACE119)
(1) 12V Smoke Oil Pump (P/N ACE115)
- (2) 90° Barb Fittings
- (2) Straight Barb Fittings

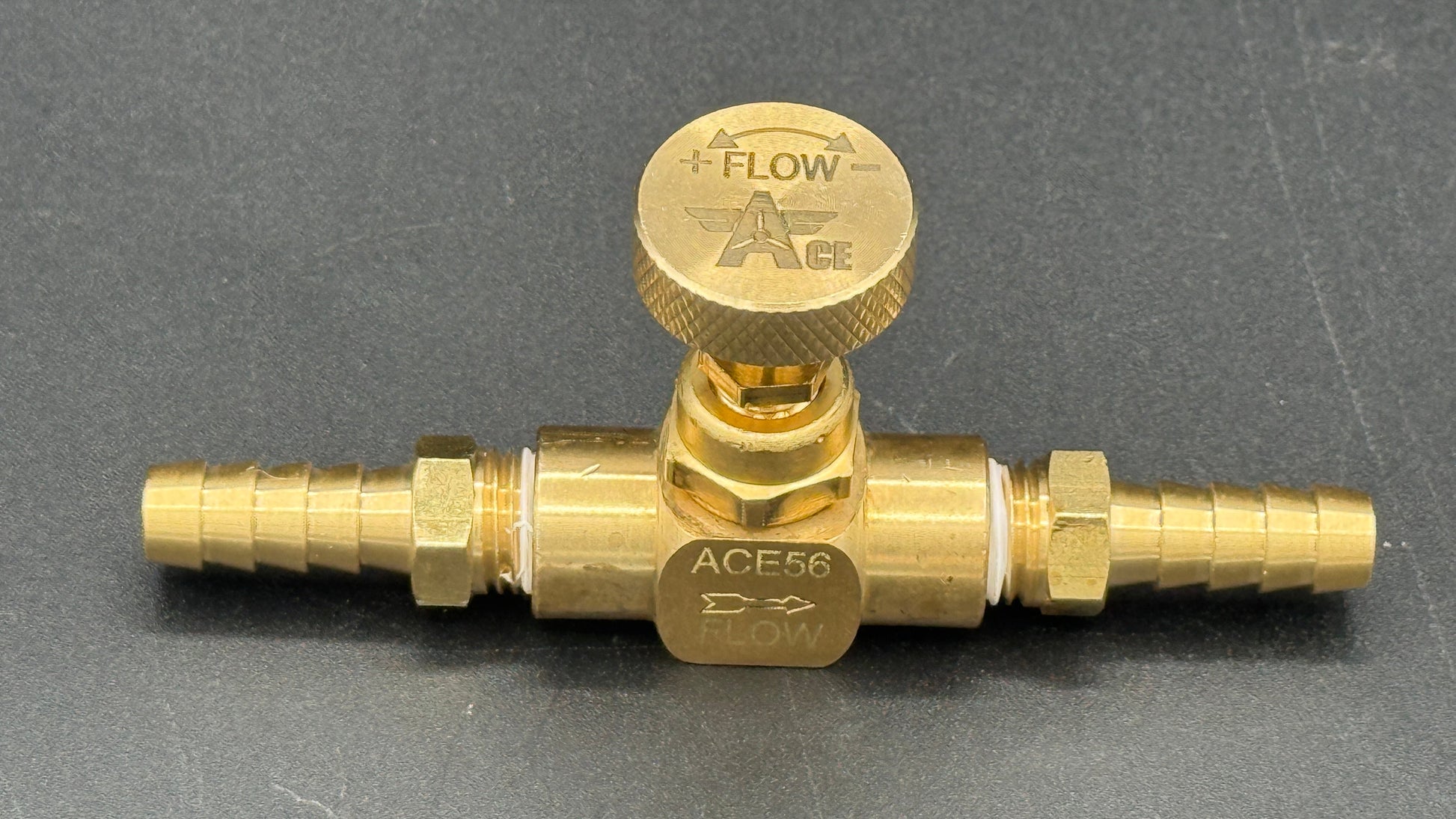

(1) Smoke Oil Metering Valve Assembly (P/N ACE57)
- (1) Smoke Oil Metering Valve
- (2) Brass Barbs
12' Smoke Oil Supply Line – Cabin Side
(5) Snap Bushings (optional use with Smoke Oil Supply Line)
(6) Smoke Oil Supply Line Hose Clamps
(1) On/Off Toggle Switch
15' Tefzel Wire (M22759)
(1) Inline Blade Fuse Holder
(2) PIDG – AMP Faston (Blade Type) Connectors
(4) PIDG – AMP Butt Splice
(10) Cable Ties

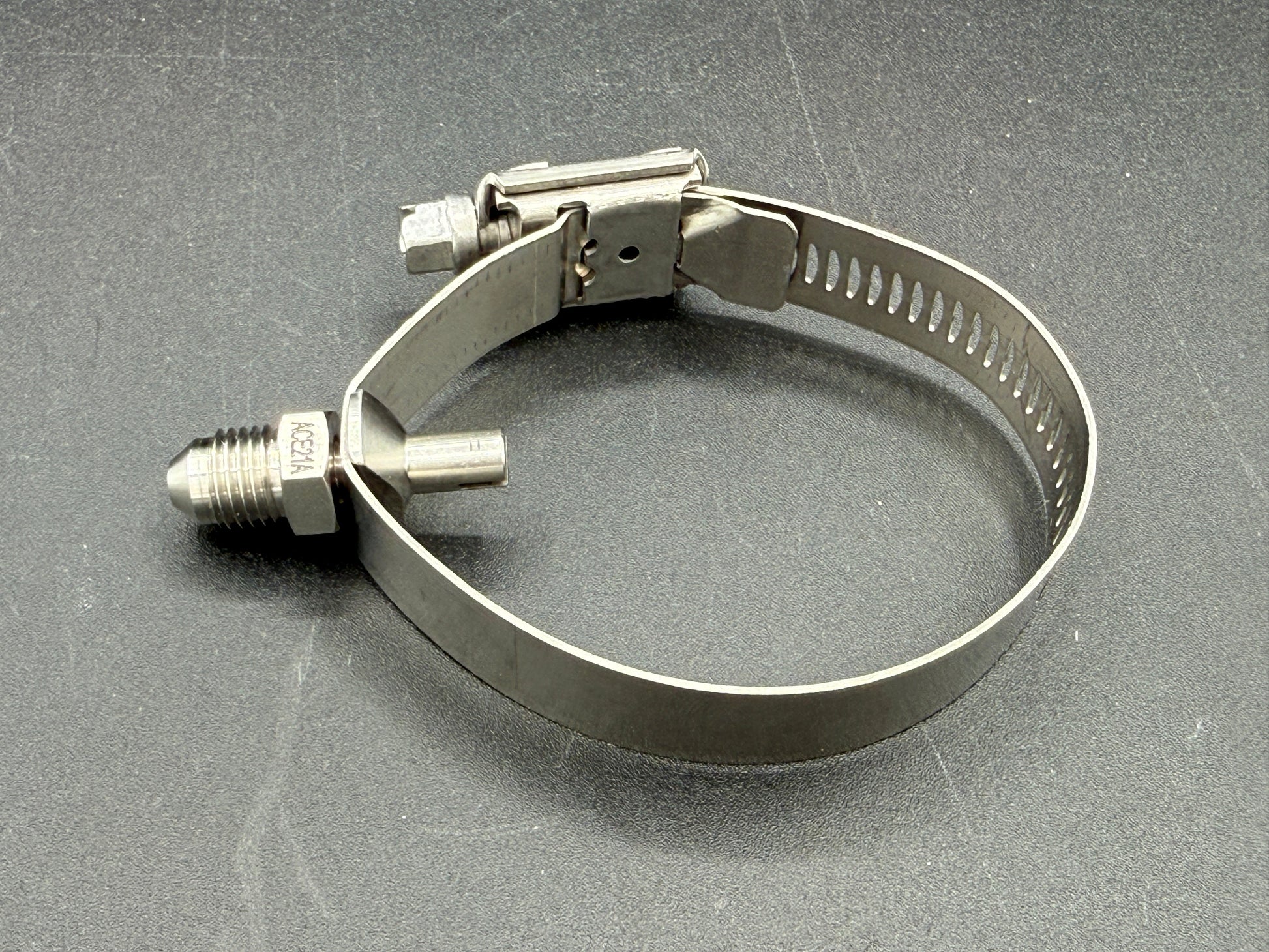

(1) Ace Smoke Injector Assembly – Strap Mounted (P/N ACE24)
- (1) Ace Smoke Injector – Strap Mounted (P/N ACE20)
- (1) Strap Mounted Smoke Injector Adapter (P/N ACE21)
- (1) Stainless Injector Clamp (P/N ACE22)
(1) Tube Anti-Seize
(1) 48" PTFE Stainless Braided Smoke Hose assembly with factory assembled straight ends (P/N ACE10)
(1) 4AN Reusable Hose End, used to shorten your hose length if desired (P/N ACE107)
(1) Firewall Tee to Hose Adapter (P/N ACE52)
(1) Firewall Tee (P/N ACE53)
(1) Cap for Firewall Tee (P/N ACE54)
(2) Firewall Washer (P/N ACE50)
(1) Steel Nut for Firewall Tee (P/N ACE51)
(1) 4 Gallon Smoke Oil Tank Assembly
- (1) Aluminum 4 Gallon Smoke Oil Tank (P/N ACE114)
- (1) Vented Cap (P/N ACE112)
- (1) ½" NPT Tank Plug
- (1) Smoke Oil Clunk Assembly (P/N ACE119)
(1) 12V Smoke Oil Pump (P/N ACE115)
- (2) 90° Barb Fittings
- (2) Straight Barb Fittings
(1) Smoke Oil Metering Valve Assembly (P/N ACE57)
- (1) Smoke Oil Metering Valve
- (2) Brass Barbs
12' Smoke Oil Supply Line – Cabin Side
(5) Snap Bushings (optional use with Smoke Oil Supply Line)
(6) Smoke Oil Supply Line Hose Clamps
(1) On/Off Toggle Switch
15' Tefzel Wire (M22759)
(1) Inline Blade Fuse Holder
(2) PIDG – AMP Faston (Blade Type) Connectors
(4) PIDG – AMP Butt Splice
(10) Cable Ties
